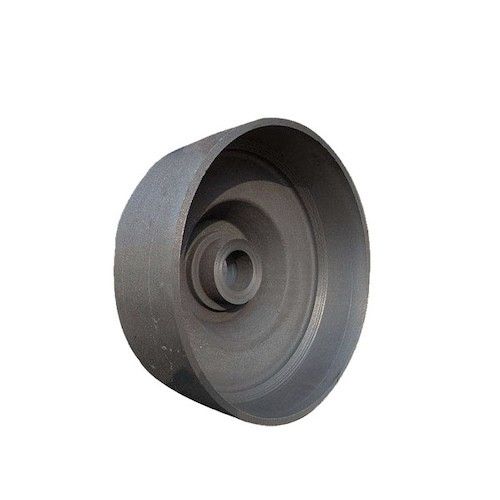

Grey Iron Casting Parts Equipments Housing Sand Casting And Machining Process
Product Details:
| Place of Origin: | China |
| Brand Name: | Twinkle Industrial |
| Certification: | ISO 9001 |
| Model Number: | TIICP-125 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 20 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 pc per month |
|
Detail Information |
|||
| Product Name: | Grey Iron Casting Parts Equipments Housing Sand Casting And Machining Process | Application: | Bearig |
|---|---|---|---|
| Material: | Grey Iron HT300 | Production: | Sand Cast With Drilling |
| Surface: | Shot Blast | ||
| Highlight: | Grey Iron Casting Parts,Machining Process Iron Casting Parts,Sand Iron Casting Parts |
||
Product Description
Grey Iron Casting Parts Equipments Housing Sand Casting And Machining Process
Product Description:
Material: Cast iron is a ferrous alloy primarily composed of iron, carbon, and silicon. Different grades of cast iron, such as gray iron or ductile iron, are used depending on the specific application requirements. Gray iron is known for its good casting properties and vibration damping, while ductile iron offers improved tensile strength and impact resistance.
Strength and Durability: Cast iron housings are highly regarded for their strength and durability. They can withstand heavy loads, harsh operating conditions, and mechanical stresses without deforming or failing. The inherent strength of cast iron makes it suitable for applications where high structural integrity is required.
. Cast Iron Casting Parts
· Ductile iron GGG40 material
· Sand Casting production
· Shot Blasting finish
· Industrial Equipments or Machinery application
| Grey Iron Material Grade from TwinkleIndustrial | ||||||||
| No. | China/GB 699 | Russia/ROCT | USA/ASTM A536 | England/BS | France/NF | Germany/DIN | Japan/JIS | ISO 683/1 |
| 1 | HT100 | BЧ10 | 100 | FC100 | 100 | |||
| 2 | HT150 | BЧ15 | No. 20 | 150 | FGL150 | GG15 | FC150 | 150 |
| 3 | HT200 | BЧ20 | No. 30 | 200 | FGL200 | GG20 | FC200 | 200 |
| 4 | HT250 | BЧ25 | No. 35 | 250 | FGL250 | GG25 | FC250 | 250 |
| 5 | HT300 | BЧ30 | No. 45 | 300 | FGL300 | GG30 | FC300 | 300 |
| 6 | HT350 | BЧ35 | No. 50 | 350 | FGL350 | GG35 | FC350 | 350 |
| 7 | BЧ40 | No. 60 | FGL400 | GG40 | ||||
| Ductile Iron Material Grade from TwinkleIndustrial | ||||||||
| No. | China/GB 699 | Russia/ROCT | USA/ASTM A536 | England/BS | France/NF | Germany/DIN | Japan/JIS | ISO 683/1 |
| 1 | QT400-18 | BЧ40 | 60-40-18 | 400/17 | FGS370-17 | GGG40 | FCD400 | 400-18 |
| 2 | QT450-10 | BЧ45 | 65-45-12 | 420/12 | FGS400-12 | FCD450 | 450-10 | |
| 3 | QT500-7 | BЧ50 | 70-50-05 | 500/7 | FGS500-7 | GGG50 | FCD500 | 500-7 |
| 4 | QT600-3 | BЧ60 | 80-60-03 | 600/7 | FGS600-2 | GGG60 | FCD600 | 600-3 |
| 5 | QT700-2 | BЧ70 | 100-70-03 | 700/2 | FGS700-2 | GGG70 | FCD700 | 700-2 |
| 6 | QT800-2 | BЧ80 | 120-90-02 | 800/2 | FGS800-2 | GGG80 | FCD800 | 800-2 |
| 7 | QT900-2 | BЧ90 | 900/22 | 900-2 | ||||
Twinkle Industrial can OEM various kinds of cast iron casting parts as the drawing or sample.
Product Specifications:
| Commodity | Iron Casting & Machining Parts |
| Standard | ASTM, DIN, JIS, EN, ISO, BS, JCSI, GB |
| Material | Grey iron (HT200,HT250,HT300), Ductile iron (QT400-18,QT400-15,QT450-10,QT500-7) |
| Unit Weight | 0,05 kg ~ 1,000 kg. |
| Tolerance | CT6-CT8 |
| Machining | Turning, Milling, Drilling, Cutting, Reaming, Threading, Welding, Tooling, etc |
| Surface Treatment | Shot blasting, Painting, Powder coating, Electroplating, Chrome plating, etc |
| Package | Standard wooden box package or as your customized package |
| Applications |
Agricultural machinery, Petroleum machinery, Mining machines, Construction, Automotive & Truck, Medical, Marine, Railway & Train, Power lines, Furniture, Lighting, Flange, Valve and Pump, Electronic, Pipeline, etc. |
| Brand | Twinkle Industrial |
Product Applications:
Widely used agricultural machinery, petroleum machinery, mining machines, construction, automotive & truck, medical, marine, railway & train, power lines, furniture, lighting, flange, valve and pump, electronic, pipeline, etc.
FAQ
Q1. How can we get a quotation?
A: Please send the parts 2D drawing (in PDF format) and 3D model in IGS or STP format together with material, production technique, purchasing qty, etc, or provide sample to us.
Q2. What about the lead time?
A: 15-20 days for Sample making ,20 working days for mass production.
Q3. Do you have any MOQ limit for casting parts?
A: It depends on different parts. For some parts, 1 pc can be acceptable.
Q4. What is your payment term?
A: Mold: 50% payment in advance, balance after the sample approval.
B: Mass production: 30% payment in advance, 70% balance before shipment.
Q5. What is your quality control process?
A: Each casting parts will be provided with raw material report ( chemical composition and physical property), and dimension measuring report before shipment.
Q6. How about the packaging?
A: Standard wooden box package or as your customized package.
