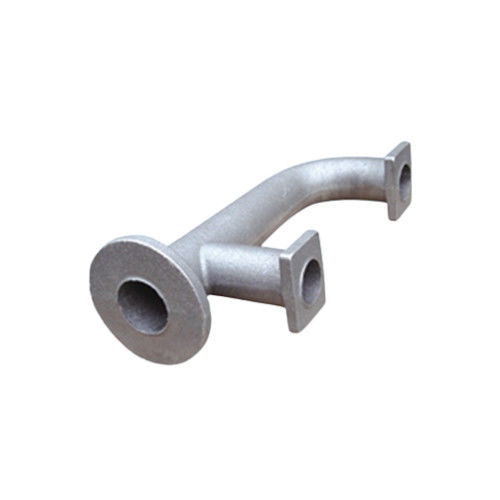

Ductile Iron FCD500 Iron Casting Manifold Exhaust Manifold Pipe For Automotive
Product Details:
| Place of Origin: | China |
| Brand Name: | Twinkle Industrial |
| Certification: | ISO 9001 |
| Model Number: | TIICP-14 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 20 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 pc per month |
|
Detail Information |
|||
| Product Name: | Customized Ductile Iron Exhaust Manifold Pipe Iron Casting Parts For Automotive | Application: | Automotive |
|---|---|---|---|
| Material: | Ductile Iron 500 | Production: | Resin Sand Casting |
| Surface: | Shot Blasting Finish | ||
| Highlight: | Ductile Iron Cast Iron Manifold,Ductile Iron Exhaust Manifold Pipe QT500,Automotive Cast Iron Manifold QT500 |
||
Product Description
Customized Ductile Iron Exhaust Manifold Pipe Iron Casting Parts For Automotive
Quick Detail:
· Ductile Iron Casting Exhaust Manifold Pipe
· Ductile iron QT500
· Sand Casting
· Shot Blasting finish
· Automotive
Product Description:
The ductile iron exhaust manifold refers to the connection between the engine and the cylinder block, which gathers the exhaust gas of each cylinder and has divergent pipes. The exhaust manifold is an important part of the exhaust system of the automobile engine. Its main function is to collect the exhaust gas burned in the engine cylinder, transfer it to the catalytic converter for cleaning and purification, and the muffler to reduce noise so as to meet the emission standards.
Exhaust manifolds need to withstand temperatures above 500 degrees Celsius and up to 750 degrees Celsius. According to different materials, exhaust manifolds are generally divided into three types: gray cast iron, ductile iron, and high-nickel ductile iron. Low emissions. Due to the high nickel content of high-nickel ductile iron (nickel content between 13% and 36%), no phase transformation will occur even if it works at 900°, which greatly improves the high-temperature stability of the material.
| Ductile Iron Material Grade | ||||||||
| No. | China/GB 699 | Russia/ROCT | USA/ASTM A536 | England/BS | France/NF | Germany/DIN | Japan/JIS | ISO 683/1 |
| 1 | QT400-18 | BЧ40 | 60-40-18 | 400/17 | FGS370-17 | GGG40 | FCD400 | 400-18 |
| 2 | QT450-10 | BЧ45 | 65-45-12 | 420/12 | FGS400-12 | FCD450 | 450-10 | |
| 3 | QT500-7 | BЧ50 | 70-50-05 | 500/7 | FGS500-7 | GGG50 | FCD500 | 500-7 |
| 4 | QT600-3 | BЧ60 | 80-60-03 | 600/7 | FGS600-2 | GGG60 | FCD600 | 600-3 |
| 5 | QT700-2 | BЧ70 | 100-70-03 | 700/2 | FGS700-2 | GGG70 | FCD700 | 700-2 |
| 6 | QT800-2 | BЧ80 | 120-90-02 | 800/2 | FGS800-2 | GGG80 | FCD800 | 800-2 |
| 7 | QT900-2 | BЧ90 | 900/22 | 900-2 | ||||
Product Specifications:
| Commodity | Iron Casting & Machining Parts / Gear Cap |
| Standard | ASTM, DIN, JIS, EN, ISO, BS, JCSI, GB |
| Material | Grey iron (HT200,HT250,HT300), Ductile iron (QT400-18,QT400-15,QT450-10,QT500-7) |
| Unit Weight | 0,05 kg ~ 1,000 kg. |
| Tolerance | CT6-CT8 |
| Machining | Turning, Milling, Drilling, Cutting, Reaming, Threading, Welding, Tooling, etc |
| Surface Treatment | Shot blasting, Painting, Powder coating, Electroplating, Chrome plating, etc |
| Package | Standard wooden box package or as your customized package |
| Applications |
Agricultural machinery, Petroleum machinery, Mining machines, Construction, Automotive & Truck, Medical, Marine, Railway & Train, Power lines, Furniture, Lighting, Flange, Valve and Pump, Electronic, Pipeline, etc. |
| Brand | Twinkle Industrial |
Product Applications:
Widely used agricultural machinery, petroleum machinery, mining machines, construction, automotive & truck, medical, marine, railway & train, power lines, furniture, lighting, flange, valve and pump, electronic, pipeline, etc.
FAQ
Q1. How can we get a quotation?
A: Please send the parts 2D drawing (in PDF format) and 3D model in IGS or STP format together with material, production technique, purchasing qty, etc, or provide sample to us.
Q2. What about the lead time?
A: 15-20 days for Sample making ,20 working days for mass production.
Q3. Do you have any MOQ limit for casting parts?
A: It depends on different parts. For some parts, 1 pc can be acceptable.
Q4. What is your payment term?
A: Mold: 50% payment in advance, balance after the sample approval.
B: Mass production: 30% payment in advance, 70% balance before shipment.
Q5. What is your quality control process?
A: Each casting parts will be provided with raw material report ( chemical composition and physical property), and dimension measuring report before shipment.
Q6. How about the packaging?
A: Standard wooden box package or as your customized package.
