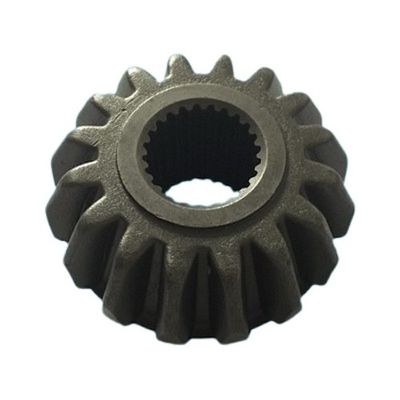

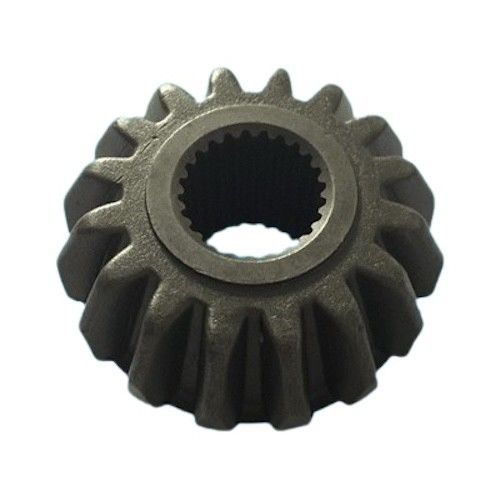

GGG40 Cast Iron Bevel Gear Iron Casting Gear For Farming Machinery Harvester
Product Details:
| Place of Origin: | China |
| Brand Name: | Twinkle Industrial |
| Certification: | ISO 9001 |
| Model Number: | TIICP-104 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 20 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 pc per month |
|
Detail Information |
|||
| Product Name: | GGG40 Cast Iron Internal Gear Sand Casting Gear For Machine Tool | Application: | Machines |
|---|---|---|---|
| Material: | Cast Iron | Process: | Casting |
| Service: | Can Be Customized | ||
| Highlight: | Farming Machinery Harvester Iron Casting Gear,GGG40 Iron Casting Gear |
||
Product Description
GGG40 Cast Iron Bevel Gear Iron Casting Gear For Farming Machinery Harvester
Quick Detail:
· Ductile Iron Casting bevel Gear
· Cast iron GGG40
· Resin Sand Casting and CNC Machining
· Shot Blasting fininsh for surface treatment
· Agricultural Machinery, Machine tool, Textile machines, sewing machines, cigarette machines, spraying equipment
Product Description:
A cast iron bevel gear is a type of gear commonly used in harvesters and other machinery that require power transmission at a right angle. Bevel gears are used to transfer rotational motion between intersecting shafts with a specific angle between them.
In a harvester, cast iron bevel gears can be found in the power transmission system, particularly in the gearbox or drivetrain assembly. Here's how cast iron bevel gears are utilized in a harvester:
Power Transfer: Bevel gears are used to transfer power from the engine or motor to other components within the harvester. They help transmit rotational force and torque between the input and output shafts at a right angle.
Change of Direction: Harvesters often require power to be redirected or transmitted at a right angle to accommodate the layout and design of various components. Cast iron bevel gears enable this change in direction by meshing with another bevel gear at the desired angle.
Gear Ratio: Bevel gears can be designed with different tooth configurations to provide specific gear ratios. This allows for speed and torque adjustments in the power transmission system of the harvester, depending on the operational requirements.
Durability and Strength: Cast iron is chosen for bevel gears due to its excellent strength, wear resistance, and durability. Harvesters operate in demanding conditions, and cast iron bevel gears can withstand the heavy loads, shocks, and stresses associated with power transmission.
It's important to note that the specific design, size, and configuration of the cast iron bevel gear used in a harvester may vary depending on the manufacturer, model, and application requirements. The gear teeth, pitch, tooth profile, and dimensions are carefully engineered to ensure efficient and reliable power transmission in the harvester's drivetrain system.
Product Specifications:
| Commodity | Iron Casting & Machining Internal Gear |
| Standard | ASTM, DIN, JIS, EN, ISO, BS, JCSI, GB |
| Material | Grey iron (HT200,HT250,HT300), Ductile iron (QT400-18,QT400-15,QT450-10,QT500-7) |
| Unit Weight | 0,05 kg ~ 1,000 kg. |
| Tolerance | CT6-CT8 |
| Machining | Turning, Milling, Drilling, Cutting, Reaming, Threading, Welding, Tooling, etc |
| Surface Treatment | Shot blasting, Painting, Powder coating, Electroplating, Chrome plating, etc |
| Package | Standard wooden box package or as your customized package |
| Applications | Agricultural machinery, Petroleum machinery, Mining machines, Construction, Automotive & Truck, Medical, Marine, Railway & Train, Power lines, Furniture, Lighting, Flange, Valve and Pump, Electronic, Pipeline, etc. |
| Brand | Twinkle Industrial |
Product Applications:
Widely used agricultural machinery, petroleum machinery, mining machines, construction, automotive & truck, medical, marine, railway & train, power lines, furniture, lighting, flange, valve and pump, electronic, pipeline, etc.
FAQ
Q1. How can we get a quotation?
A: Please send the parts 2D drawing (in PDF format) and 3D model in IGS or STP format together with material, production technique, purchasing qty, etc, or provide sample to us.
Q2. What about the lead time?
A: 15-20 days for Sample making ,20 working days for mass production.
Q3. Do you have any MOQ limit for casting parts?
A: It depends on different parts. For some parts, 1 pc can be acceptable.
Q4. What is your payment term?
A: Mold: 50% payment in advance, balance after the sample approval.
B: Mass production: 30% payment in advance, 70% balance before shipment.
Q5. What is your quality control process?
A: Each casting parts will be provided with raw material report ( chemical composition and physical property), and dimension measuring report before shipment.
Q6. How about the packaging?
A: Standard wooden box package or as your customized package.
