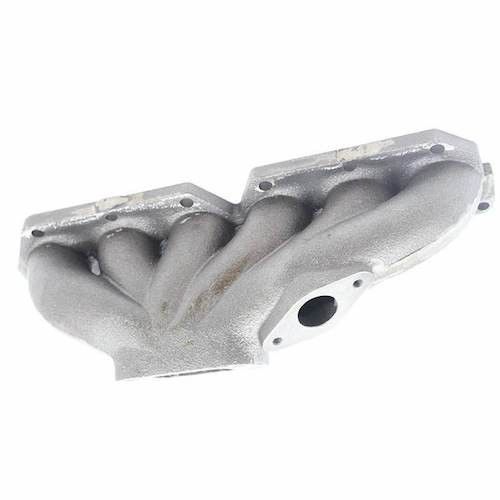

OEM ODM Sand Iron Casting Parts Ductile Iron Exhaust Manifold For Automotive
Product Details:
| Place of Origin: | China |
| Brand Name: | Twinkle Industrial |
| Certification: | ISO 9001 |
| Model Number: | TIICP-87 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 20 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 pc per month |
|
Detail Information |
|||
| Product Name: | Customized Ductile Iron Exhaust Manifold Pipe Iron Casting Parts For Automotive | Application: | Automotive |
|---|---|---|---|
| Material: | Ductile Iron 500 | Production: | Resin Sand Casting |
| Surface: | Shot Blasting Finish | ||
| Highlight: | ODM Iron Casting Parts,Exhaust Manifold Iron Casting Parts,Ductile Iron Exhaust Manifold |
||
Product Description
OEM & ODM Sand Casting Iron Casting Parts Ductile Iron Exhaust Manifold For Automotive
Quick Detail:
· Ductile Iron Casting Exhaust Manifold Pipe
· Ductile iron QT500
· Sand Casting
· Shot Blasting finish
· Automotive
Product Description:
The exhaust manifold is located at the head of the exhaust system, and the modification method is mainly a replacement part. Most of the original exhaust manifold is made of cast iron, and the inner pipe of this exhaust manifold is rough, the length of each manifold is different, and the jointing method, distance, and shape are not thorough.
Therefore, the original exhaust manifold is very easy to produce exhaust interference, so that the exhaust gas discharged from each cylinder rushes to each other and is blocked, and the manifold is close to the cylinder, which is not good for air intake and combustion. Exhaust manifolds made by refitting factories are generally made of stainless steel, which is lightweight, durable, and has a smooth inner wall.
The high-quality exhaust manifold is also welded and ground without any step difference at the point where the manifold connects the base and the joint, which reduces drag and accelerates airflow. The high-quality exhaust manifold has a uniform length and a small pressure difference, which is conducive to the backpressure setting of the rear exhaust pipe, and the overall suction and exhaust efficiency can also be greatly improved.
| Ductile Iron Material Grade | ||||||||
| No. | China/GB 699 | Russia/ROCT | USA/ASTM A536 | England/BS | France/NF | Germany/DIN | Japan/JIS | ISO 683/1 |
| 1 | QT400-18 | BЧ40 | 60-40-18 | 400/17 | FGS370-17 | GGG40 | FCD400 | 400-18 |
| 2 | QT450-10 | BЧ45 | 65-45-12 | 420/12 | FGS400-12 | FCD450 | 450-10 | |
| 3 | QT500-7 | BЧ50 | 70-50-05 | 500/7 | FGS500-7 | GGG50 | FCD500 | 500-7 |
| 4 | QT600-3 | BЧ60 | 80-60-03 | 600/7 | FGS600-2 | GGG60 | FCD600 | 600-3 |
| 5 | QT700-2 | BЧ70 | 100-70-03 | 700/2 | FGS700-2 | GGG70 | FCD700 | 700-2 |
| 6 | QT800-2 | BЧ80 | 120-90-02 | 800/2 | FGS800-2 | GGG80 | FCD800 | 800-2 |
| 7 | QT900-2 | BЧ90 | 900/22 | 900-2 | ||||
Product Specifications:
| Commodity | Iron Casting & Machining Parts / Gear Cap |
| Standard | ASTM, DIN, JIS, EN, ISO, BS, JCSI, GB |
| Material | Grey iron (HT200,HT250,HT300), Ductile iron (QT400-18,QT400-15,QT450-10,QT500-7) |
| Unit Weight | 0,05 kg ~ 1,000 kg. |
| Tolerance | CT6-CT8 |
| Machining | Turning, Milling, Drilling, Cutting, Reaming, Threading, Welding, Tooling, etc |
| Surface Treatment | Shot blasting, Painting, Powder coating, Electroplating, Chrome plating, etc |
| Package | Standard wooden box package or as your customized package |
| Applications |
Agricultural machinery, Petroleum machinery, Mining machines, Construction, Automotive & Truck, Medical, Marine, Railway & Train, Power lines, Furniture, Lighting, Flange, Valve and Pump, Electronic, Pipeline, etc. |
| Brand | Twinkle Industrial |
Product Applications:
Widely used agricultural machinery, petroleum machinery, mining machines, construction, automotive & truck, medical, marine, railway & train, power lines, furniture, lighting, flange, valve and pump, electronic, pipeline, etc.
FAQ
Q1. How can we get a quotation?
A: Please send the parts 2D drawing (in PDF format) and 3D model in IGS or STP format together with material, production technique, purchasing qty, etc, or provide sample to us.
Q2. What about the lead time?
A: 15-20 days for Sample making ,20 working days for mass production.
Q3. Do you have any MOQ limit for casting parts?
A: It depends on different parts. For some parts, 1 pc can be acceptable.
Q4. What is your payment term?
A: Mold: 50% payment in advance, balance after the sample approval.
B: Mass production: 30% payment in advance, 70% balance before shipment.
Q5. What is your quality control process?
A: Each casting parts will be provided with raw material report ( chemical composition and physical property), and dimension measuring report before shipment.
Q6. How about the packaging?
A: Standard wooden box package or as your customized package.
