Ductile GGG40 Cast Iron Automobile Parts Cylinder Liners For Automotive Engine
Product Details:
| Place of Origin: | China |
| Brand Name: | Twinkle Industrial |
| Certification: | ISO 9001 |
| Model Number: | TIICP-81 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 20 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 pc per month |
|
Detail Information |
|||
| Product Name: | OEM Ductile Iron QT400 Iron Casting Parts For Engine Oil Nozzle | Application: | Engine Oil Nozzle |
|---|---|---|---|
| Material: | Ductile Iron | Package: | Wooden Box |
| Surface: | Red Painting | ||
| Highlight: | GGG40 Cast Iron Automobile Parts,Cylinder Liners Cast Iron Automobile Parts,Automotive Cylinder Liners Cast Iron Parts |
||
Product Description

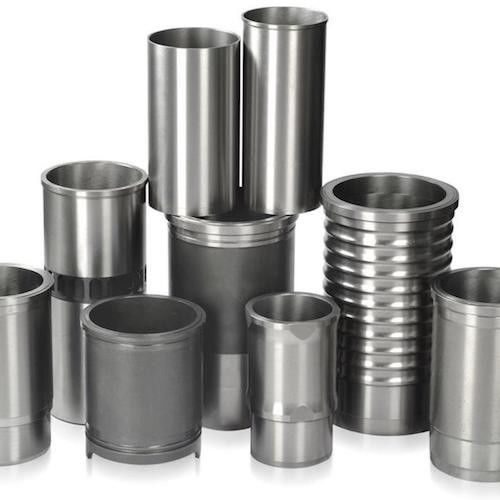

Ductile Iron Cylinder Liners Iron Casting Parts For Automotive Engine
Quick Detail:
· Ductile Iron Casting Cylinder Sleeve
· Ductile iron QT400, GGG40
· Sand Casting and CNC machining
· Shot Blasting and red painting
· Automotive Engine
| Ductile Iron Material Grade | ||||||||
| No. | China/GB 699 | Russia/ROCT | USA/ASTM A536 | England/BS | France/NF | Germany/DIN | Japan/JIS | ISO 683/1 |
| 1 | QT400-18 | BЧ40 | 60-40-18 | 400/17 | FGS370-17 | GGG40 | FCD400 | 400-18 |
| 2 | QT450-10 | BЧ45 | 65-45-12 | 420/12 | FGS400-12 | FCD450 | 450-10 | |
| 3 | QT500-7 | BЧ50 | 70-50-05 | 500/7 | FGS500-7 | GGG50 | FCD500 | 500-7 |
| 4 | QT600-3 | BЧ60 | 80-60-03 | 600/7 | FGS600-2 | GGG60 | FCD600 | 600-3 |
| 5 | QT700-2 | BЧ70 | 100-70-03 | 700/2 | FGS700-2 | GGG70 | FCD700 | 700-2 |
| 6 | QT800-2 | BЧ80 | 120-90-02 | 800/2 | FGS800-2 | GGG80 | FCD800 | 800-2 |
| 7 | QT900-2 | BЧ90 | 900/22 | 900-2 | ||||
Product Description:
Automotive cast iron cylinder liners are internally mounted components in the engine block to provide a stable combustion chamber, and the material of the cylinder liner must have sufficient hardness, strength, wear performance and thermal stability to withstand high temperatures, high pressures and high speeds.
Ductile iron is a kind of cast iron material with better strength and toughness than gray cast iron, its main components are iron, carbon, silicon and magnesium and other elements, with good wear resistance, heat resistance and corrosion resistance, the main advantages of ductile iron are its high strength and toughness, as well as good wear resistance and heat resistance.
Product Specifications:
| Commodity | Iron Casting & Machining Parts / Gear Cap |
| Standard | ASTM, DIN, JIS, EN, ISO, BS, JCSI, GB |
| Material | Grey iron (HT200,HT250,HT300), Ductile iron (QT400-18,QT400-15,QT450-10,QT500-7) |
| Unit Weight | 0,05 kg ~ 1,000 kg. |
| Tolerance | CT6-CT8 |
| Machining | Turning, Milling, Drilling, Cutting, Reaming, Threading, Welding, Tooling, etc |
| Surface Treatment | Shot blasting, Painting, Powder coating, Electroplating, Chrome plating, etc |
| Package | Standard wooden box package or as your customized package |
| Applications |
Agricultural machinery, Petroleum machinery, Mining machines, Construction, Automotive & Truck, Medical, Marine, Railway & Train, Power lines, Furniture, Lighting, Flange, Valve and Pump, Electronic, Pipeline, etc. |
| Brand | Twinkle Industrial |
Product Applications:
Widely used agricultural machinery, petroleum machinery, mining machines, construction, automotive & truck, medical, marine, railway & train, power lines, furniture, lighting, flange, valve and pump, electronic, pipeline, etc.
FAQ
Q1. How can we get a quotation?
A: Please send the parts 2D drawing (in PDF format) and 3D model in IGS or STP format together with material, production technique, purchasing qty, etc, or provide sample to us.
Q2. What about the lead time?
A: 15-20 days for Sample making ,20 working days for mass production.
Q3. Do you have any MOQ limit for casting parts?
A: It depends on different parts. For some parts, 1 pc can be acceptable.
Q4. What is your payment term?
A: Mold: 50% payment in advance, balance after the sample approval.
B: Mass production: 30% payment in advance, 70% balance before shipment.
Q5. What is your quality control process?
A: Each casting parts will be provided with raw material report ( chemical composition and physical property), and dimension measuring report before shipment.
Q6. How about the packaging?
A: Standard wooden box package or as your customized package.
