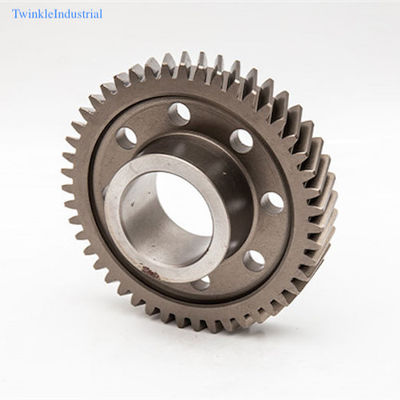

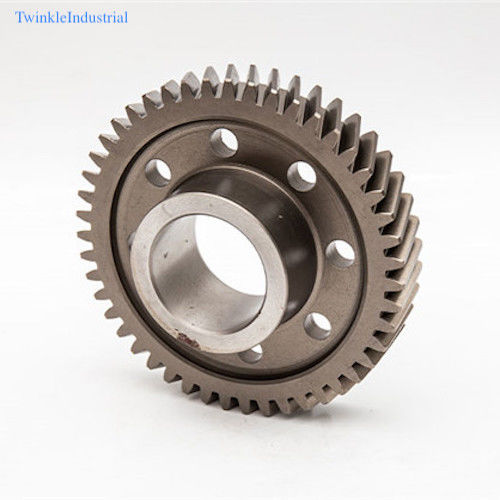

Ductile Iron JIS FCD450 Cast Iron Machine Parts Gearbox Gear
Product Details:
| Place of Origin: | China |
| Brand Name: | Twinkle Industrial |
| Certification: | ISO 9001 |
| Model Number: | TIICP-78 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 20 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 pc per month |
|
Detail Information |
|||
| Product Name: | OEM + ODM Cast Iron GG25 Gear Iron Casting Parts For Machinery | Application: | Machines |
|---|---|---|---|
| Material: | Cast Iron | Process: | Casting |
| Service: | Can Be Customized | ||
| Highlight: | Gearbox Gear Cast Iron Machine Parts,Ductile Cast Iron Machine Parts,Cast Iron Parts Gearbox Gear |
||
Product Description
Ductile Iron JIS FCD450 Gearbox Gear Iron Casting Pats For Agricultural Machinery
| Ductile Iron Material Grade | ||||||||
| No. | China/GB 699 | Russia/ROCT | USA/ASTM A536 | England/BS | France/NF | Germany/DIN | Japan/JIS | ISO 683/1 |
| 1 | QT400-18 | BЧ40 | 60-40-18 | 400/17 | FGS370-17 | GGG40 | FCD400 | 400-18 |
| 2 | QT450-10 | BЧ45 | 65-45-12 | 420/12 | FGS400-12 | FCD450 | 450-10 | |
| 3 | QT500-7 | BЧ50 | 70-50-05 | 500/7 | FGS500-7 | GGG50 | FCD500 | 500-7 |
| 4 | QT600-3 | BЧ60 | 80-60-03 | 600/7 | FGS600-2 | GGG60 | FCD600 | 600-3 |
| 5 | QT700-2 | BЧ70 | 100-70-03 | 700/2 | FGS700-2 | GGG70 | FCD700 | 700-2 |
| 6 | QT800-2 | BЧ80 | 120-90-02 | 800/2 | FGS800-2 | GGG80 | FCD800 | 800-2 |
| 7 | QT900-2 | BЧ90 | 900/22 | 900-2 | ||||
Quick Detail:
· Ductile Iron Casting Gear
· Cast iron 65-45-12
· Resin Sand Casting and CNC Machining
· Shot Blasting fininsh for surface treatment
· Agricultural Machinery
Product Description:
Gearbox is a common transmission mechanism, which is widely used in agricultural machinery, mainly including tractors, harvesters, rice transplanters, and irrigation machines. As for the agricultural machinery that needs gearboxes, choosing the right gearbox can improve the working efficiency and reliability of the machinery and prolong the service life. At the same time, in the selection, use and maintenance of gearboxes, it is also necessary to pay attention to safety and correct operation. Of course, the gears in the gearbox are especially important. We can customize the gears in the gearbox according to the customer's agricultural machinery needs.
Product Specifications:
| Commodity | Iron Casting & Machining Parts / Gear Cap |
| Standard | ASTM, DIN, JIS, EN, ISO, BS, JCSI, GB |
| Material | Grey iron (HT200,HT250,HT300), Ductile iron (QT400-18,QT400-15,QT450-10,QT500-7) |
| Unit Weight | 0,05 kg ~ 1,000 kg. |
| Tolerance | CT6-CT8 |
| Machining | Turning, Milling, Drilling, Cutting, Reaming, Threading, Welding, Tooling, etc |
| Surface Treatment | Shot blasting, Painting, Powder coating, Electroplating, Chrome plating, etc |
| Package | Standard wooden box package or as your customized package |
| Applications |
Agricultural machinery, Petroleum machinery, Mining machines, Construction, Automotive & Truck, Medical, Marine, Railway & Train, Power lines, Furniture, Lighting, Flange, Valve and Pump, Electronic, Pipeline, etc. |
| Brand | Twinkle Industrial |
Product Applications:
Widely used agricultural machinery, petroleum machinery, mining machines, construction, automotive & truck, medical, marine, railway & train, power lines, furniture, lighting, flange, valve and pump, electronic, pipeline, etc.
FAQ
Q1. How can we get a quotation?
A: Please send the parts 2D drawing (in PDF format) and 3D model in IGS or STP format together with material, production technique, purchasing qty, etc, or provide sample to us.
Q2. What about the lead time?
A: 15-20 days for Sample making ,20 working days for mass production.
Q3. Do you have any MOQ limit for casting parts?
A: It depends on different parts. For some parts, 1 pc can be acceptable.
Q4. What is your payment term?
A: Mold: 50% payment in advance, balance after the sample approval.
B: Mass production: 30% payment in advance, 70% balance before shipment.
Q5. What is your quality control process?
A: Each casting parts will be provided with raw material report ( chemical composition and physical property), and dimension measuring report before shipment.
Q6. How about the packaging?
A: Standard wooden box package or as your customized package.
