Nodular Ductile Iron Pipe Flanged Fittings GG45 Flange For Cast Iron Pipe Fittings
Product Details:
| Place of Origin: | China |
| Brand Name: | Twinkle Industrial |
| Certification: | ISO 9001 |
| Model Number: | TICIF-06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 20 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 pc per month |
|
Detail Information |
|||
| Product: | Customized Nodular Cast Iron GG45 Cast Iron Flange For Pipe Fittings | Application: | Construction |
|---|---|---|---|
| Material: | Nodular Cast Iron | Surface: | Blasting Surface |
| Highlight: | Nodular Ductile Iron Pipe Flanged Fittings,Ductile Iron Pipe Flanged Fittings GG45,GG45 Flange For Cast Iron Pipe Fittings |
||
Product Description

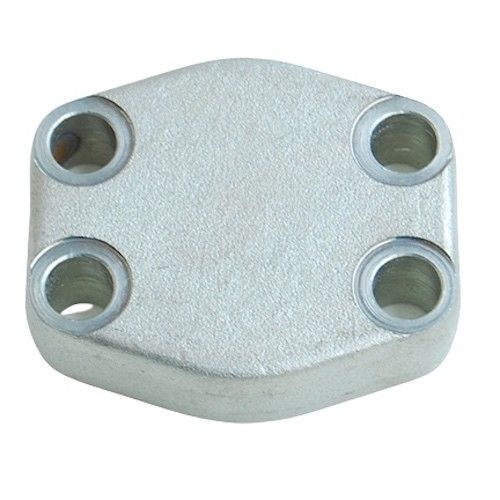

Customized Nodular Cast Iron GG45 Cast Iron Flange For Pipe Fittings
Quick Detail:
· Ductile Iron Casting Flange
· GGG45/QT450/FC450
· Mould + Sand Casting + CNC Machining
· Shot Blasting + Yellow Zinc Plated
· Used for connection of all kinds of pipeline
Product Description:
Ductile iron is a new type of structural material with good mechanical properties. Its tensile strength can reach or even exceed the level of ordinary carbon steel, and it also has certain plasticity. Because the strength, toughness and corrosion resistance of ductile iron are superior to gray cast iron, ductile iron pipe flanges are widely used in domestic and foreign machinery, light industry, textile, metallurgy, coal, hydropower, shipbuilding and urban construction and other piping systems. . The applicable temperature range of ductile iron pipe flange is -10~350℃; the applicable nominal pressure range is 1.0~5.0MPa and the nominal diameter range is 25~2000mm.
Product Specifications:
| Commodity | Cast Iron Sand Casting & Machining Parts |
| Standard | ASTM, DIN, JIS, EN, ISO, BS, GB |
| Material | Grey iron (HT200,HT250,HT300), Ductile iron (QT400-18,QT400-15,QT450-10,QT500-7) |
| Unit Weight | 0,05 kg ~ 1,000 kg. |
| Tolerance | CT6-CT8 |
| Machining | Turning, Milling, Drilling, Cutting, Reaming, Threading, Welding, Tooling, etc |
| Surface Treatment | Shot blasting, Painting, Powder coating, Electroplating, Chrome plating, etc |
| Package | Standard wooden box package or as your customized package |
| Applications | Agricultural machinery, Petroleum machinery, Mining machines, Construction, Automotive, Medical, Marine, Railway, Power lines, Furniture, Lighting, Pipeline, etc. |
| Brand | Twinkle Industrial |
Product Applications:
Widely used in agricultural machinery, petroleum machinery, mining machines, construction, automotive, medical, marine, railway, power lines, furniture, lighting, pipeline, etc.
FAQ
Q1. How can we get a quotation?
A: Please send the parts 2D drawing (in PDF format) and 3D model in IGS or STP format together with material, production technique, purchasing qty, etc, or provide sample to us.
Q2. What about the lead time?
A: 15-20 days for Sample making ,20 working days for mass production.
Q3. Do you have any MOQ limit for casting parts?
A: It depends on different parts. For some parts, 1 pc can be acceptable.
Q4. What is your payment term?
A: Mold: 50% payment in advance, balance after the sample approval.
B: Mass production: 30% payment in advance, 70% balance before shipment.
Q5. What is your quality control process?
A: Each casting parts will be provided with raw material report ( chemical composition and physical property), and dimension measuring report before shipment.
Q6. How about the packaging?
A: Standard wooden box package or as your customized package.
