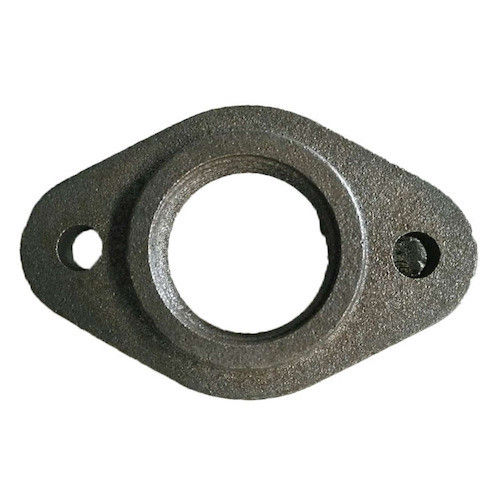

DIN Ductile Iron Threaded Flange Cast Iron Pipeline Connecting
Product Details:
| Place of Origin: | China |
| Brand Name: | Twinkle Industrial |
| Certification: | ISO 9001 |
| Model Number: | TICIF-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 20 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 pc per month |
|
Detail Information |
|||
| Product: | Customized Ductile Iron Cast Iron Flange Pipeline Connecting | Application: | Pipeline Connecting |
|---|---|---|---|
| Dimensions: | Drawings | Process: | Resign Sand Casting |
| Highlight: | DIN Ductile Iron Threaded Flange,Ductile Iron Threaded Flange Pipeline Connecting,DIN Flange Cast Iron HT250 |
||
Product Description
Customized Ductile Iron Cast Iron Flange Pipeline Connecting
Quick Detail:
· Ductile Iron Casting Flange
· GGG45/QT450/FC450
· Mould + Sand Casting + CNC Machining
· Shot Blasting + Yellow Zinc Plated
· Used for connection of all kinds of pipeline
Product Description:
Cast iron flanges come in different types, including slip-on flanges, weld neck flanges, threaded flanges, and more. Each type of flange has a specific function and is designed to meet different needs. For example, slip-on flanges are used to connect pipes with a smooth end, while weld neck flanges are used to connect pipes with a beveled end.
Product Specifications:
| Commodity | Cast Iron Sand Casting & Machining Parts |
| Standard | ASTM, DIN, JIS, EN, ISO, BS, GB |
| Material | Grey iron (HT200,HT250,HT300), Ductile iron (QT400-18,QT400-15,QT450-10,QT500-7) |
| Unit Weight | 0,05 kg ~ 1,000 kg. |
| Tolerance | CT6-CT8 |
| Machining | Turning, Milling, Drilling, Cutting, Reaming, Threading, Welding, Tooling, etc |
| Surface Treatment | Shot blasting, Painting, Powder coating, Electroplating, Chrome plating, etc |
| Package | Standard wooden box package or as your customized package |
| Applications | Agricultural machinery, Petroleum machinery, Mining machines, Construction, Automotive, Medical, Marine, Railway, Power lines, Furniture, Lighting, Pipeline, etc. |
| Brand | Twinkle Industrial |
Product Applications:
Widely used in agricultural machinery, petroleum machinery, mining machines, construction, automotive, medical, marine, railway, power lines, furniture, lighting, pipeline, etc.
FAQ
Q1. How can we get a quotation?
A: Please send the parts 2D drawing (in PDF format) and 3D model in IGS or STP format together with material, production technique, purchasing qty, etc, or provide sample to us.
Q2. What about the lead time?
A: 15-20 days for Sample making ,20 working days for mass production.
Q3. Do you have any MOQ limit for casting parts?
A: It depends on different parts. For some parts, 1 pc can be acceptable.
Q4. What is your payment term?
A: Mold: 50% payment in advance, balance after the sample approval.
B: Mass production: 30% payment in advance, 70% balance before shipment.
Q5. What is your quality control process?
A: Each casting parts will be provided with raw material report ( chemical composition and physical property), and dimension measuring report before shipment.
Q6. How about the packaging?
A: Standard wooden box package or as your customized package.
