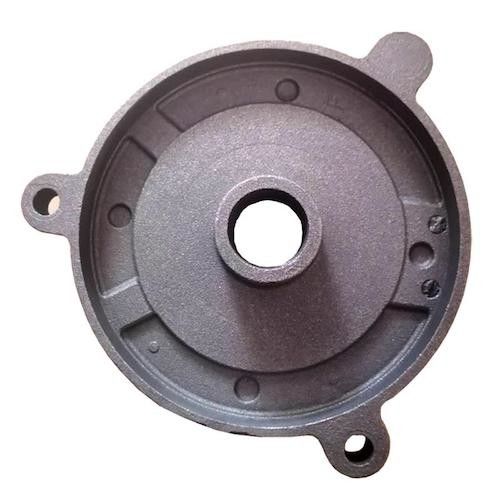

Gray Iron GG30 Iron Casting Parts Cast Iron Bearing Cap For Bearing
Product Details:
| Place of Origin: | China |
| Brand Name: | Twinkle Industrial |
| Certification: | ISO 9001 |
| Model Number: | TIICP-15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 20 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 pc per month |
|
Detail Information |
|||
| Product Name: | Customized Cast Iron Bearing Cap Pipe Iron Casting Parts For Bearing | Application: | Bearig |
|---|---|---|---|
| Material: | Grey Iron HT300 | Production: | Sand Cast With Drilling |
| Surface: | Shot Blast | ||
| Highlight: | HT300 Iron Casting Parts,Cast Iron Bearing Cap Pipe QT400,Iron Casting Parts For Bearing |
||
Product Description
Customized Cast Iron Bearing Cap Pipe Iron Casting Parts For Bearing
Product Description:
Cast iron bearing caps are a typical part of the roulette class. Bearing cover, because it can be connected, so it is also called transparent cover. The basic shape of the bearing end cover part is a coaxial rotary body. The structure can be divided into two parts: a cylinder and a disc, and its axial dimension is smaller than the radial dimension. There is a sealing groove in the round hole in the center of the disc, which is used to install the felt sealing ring to prevent the leakage of lubricating oil in the box and the intrusion of sundries outside the box.
. Cast Iron Casting Bearing Cap
· Gray iron GG30 material
· Sand Casting production
· Shot Blasting finish
· Bearing application
| Grey Iron Material Grade from TwinkleIndustrial | ||||||||
| No. | China/GB 699 | Russia/ROCT | USA/ASTM A536 | England/BS | France/NF | Germany/DIN | Japan/JIS | ISO 683/1 |
| 1 | HT100 | BЧ10 | 100 | FC100 | 100 | |||
| 2 | HT150 | BЧ15 | No. 20 | 150 | FGL150 | GG15 | FC150 | 150 |
| 3 | HT200 | BЧ20 | No. 30 | 200 | FGL200 | GG20 | FC200 | 200 |
| 4 | HT250 | BЧ25 | No. 35 | 250 | FGL250 | GG25 | FC250 | 250 |
| 5 | HT300 | BЧ30 | No. 45 | 300 | FGL300 | GG30 | FC300 | 300 |
| 6 | HT350 | BЧ35 | No. 50 | 350 | FGL350 | GG35 | FC350 | 350 |
| 7 | BЧ40 | No. 60 | FGL400 | GG40 | ||||
Twinkle Industrial can OEM various kinds of cast iron bearing cap as the drawing or sample.
Product Specifications:
| Commodity | Iron Casting & Machining Parts / Gear Cap |
| Standard | ASTM, DIN, JIS, EN, ISO, BS, JCSI, GB |
| Material | Grey iron (HT200,HT250,HT300), Ductile iron (QT400-18,QT400-15,QT450-10,QT500-7) |
| Unit Weight | 0,05 kg ~ 1,000 kg. |
| Tolerance | CT6-CT8 |
| Machining | Turning, Milling, Drilling, Cutting, Reaming, Threading, Welding, Tooling, etc |
| Surface Treatment | Shot blasting, Painting, Powder coating, Electroplating, Chrome plating, etc |
| Package | Standard wooden box package or as your customized package |
| Applications |
Agricultural machinery, Petroleum machinery, Mining machines, Construction, Automotive & Truck, Medical, Marine, Railway & Train, Power lines, Furniture, Lighting, Flange, Valve and Pump, Electronic, Pipeline, etc. |
| Brand | Twinkle Industrial |
Product Applications:
Widely used agricultural machinery, petroleum machinery, mining machines, construction, automotive & truck, medical, marine, railway & train, power lines, furniture, lighting, flange, valve and pump, electronic, pipeline, etc.
FAQ
Q1. How can we get a quotation?
A: Please send the parts 2D drawing (in PDF format) and 3D model in IGS or STP format together with material, production technique, purchasing qty, etc, or provide sample to us.
Q2. What about the lead time?
A: 15-20 days for Sample making ,20 working days for mass production.
Q3. Do you have any MOQ limit for casting parts?
A: It depends on different parts. For some parts, 1 pc can be acceptable.
Q4. What is your payment term?
A: Mold: 50% payment in advance, balance after the sample approval.
B: Mass production: 30% payment in advance, 70% balance before shipment.
Q5. What is your quality control process?
A: Each casting parts will be provided with raw material report ( chemical composition and physical property), and dimension measuring report before shipment.
Q6. How about the packaging?
A: Standard wooden box package or as your customized package.
