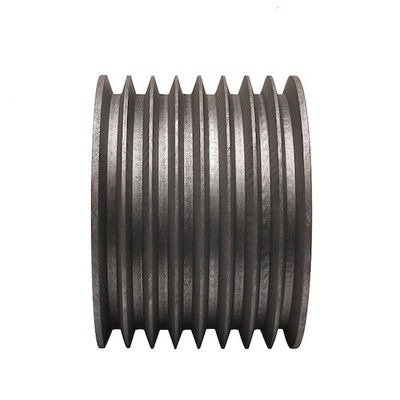

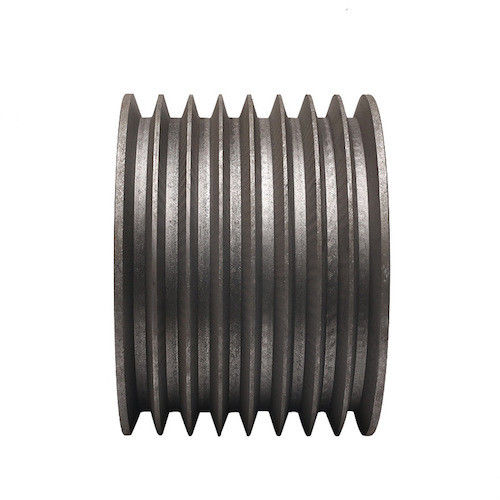

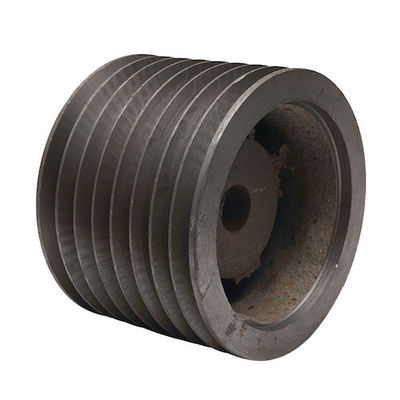

Type C Pulley Agricultural Machinery Parts 8 Slots Cast Iron V Belt Pulley
Product Details:
| Place of Origin: | China |
| Brand Name: | Twinkle Industrial |
| Certification: | ISO 9001 |
| Model Number: | TIAMP-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 20 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 pc per month |
|
Detail Information |
|||
| Product: | Type C 8 Slots Cast Iron V Belt Casting Pulley Agricultural Machinery Parts | Material: | No. 30 Iron |
|---|---|---|---|
| Model: | Type C 300x8 | Diameter: | 300mm |
| Groove: | 8 Slot | ||
| Highlight: | Pulley Agricultural Machinery Parts 300mm,Pulley Agricultural Machinery Parts 8 Slots,8 Slots Cast Iron V Belt Pulley |
||
Product Description
Type C 8 Slots Cast Iron V Belt Casting Pulley Agricultural Machinery Parts
Quick Detail:
· Cast Iron Casting Pullery
· GG20/HT200/FC200/No. 30
· Sand Casting + Machining
· Shot Blasting
· Agricultural machinery
Product Description:
The diameter and other dimensions of the pulley are all matched according to the reduction ratio, and designed according to the working speed and the speed of the motor. Working speed/motor speed = diameter of driven wheel/diameter of driving wheel * 0.98 (slip coefficient). If steel is used as the pulley, the line speed is required to be no higher than 40m/s. If cast iron is used, the line speed is required to be no higher than 35m/s, conversion ratio of motor speed and pulley diameter, speed ratio = output speed: input speed = load pulley pitch diameter: motor pulley pitch diameter.
Product Specifications:
| Commodity | Iron Casting & Machining Parts for Agricultural Machinery |
| Standard | ASTM, DIN,JIS, EN, ISO, BS, JCSI, GB |
| Material | Grey iron (HT200,HT250,HT300), Ductile iron (QT400-18,QT400-15,QT450-10,QT500-7) |
| Unit Weight | 0,05 kg ~ 1,000 kg. |
| Tolerance | CT6-CT8 |
| Machining | Turning, Milling, Drilling, Cutting, Reaming, Threading, Welding, Tooling, etc |
| Surface Treatment | Shot blasting, Painting, Powder coating, Electroplating, Chrome plating, etc |
| Package | Standard wooden box package or as your customized package |
| Applications | Agricultural machinery, Petroleum machinery, Mining machines, Construction, Automotive, Medical, Marine, Railway, Power lines, Furniture, Lighting, etc. |
| Brand | Twinkle Industrial |
Product Applications:
Widely used in agricultural machinery, petroleum machinery, mining machines, construction, automotive, medical, marine, railway, power lines, furniture, lighting, etc.
FAQ
Q1. How can we get a quotation?
A: Please send the parts 2D drawing (in PDF format) and 3D model in IGS or STP format together with material, production technique, purchasing qty, etc, or provide sample to us.
Q2. What about the lead time?
A: 15-20 days for Sample making ,20 working days for mass production.
Q3. Do you have any MOQ limit for casting parts?
A: It depends on different parts. For some parts, 1 pc can be acceptable.
Q4. What is your payment term?
A: Mold: 50% payment in advance, balance after the sample approval.
B: Mass production: 30% payment in advance, 70% balance before shipment.
Q5. What is your quality control process?
A: Each casting parts will be provided with raw material report ( chemical composition and physical property), and dimension measuring report before shipment.
Q6. How about the packaging?
A: Standard wooden box package or as your customized package.
